Infrared Filters

Infrared Filter Solutions Across
SWIR, MWIR, and LWIR Bands

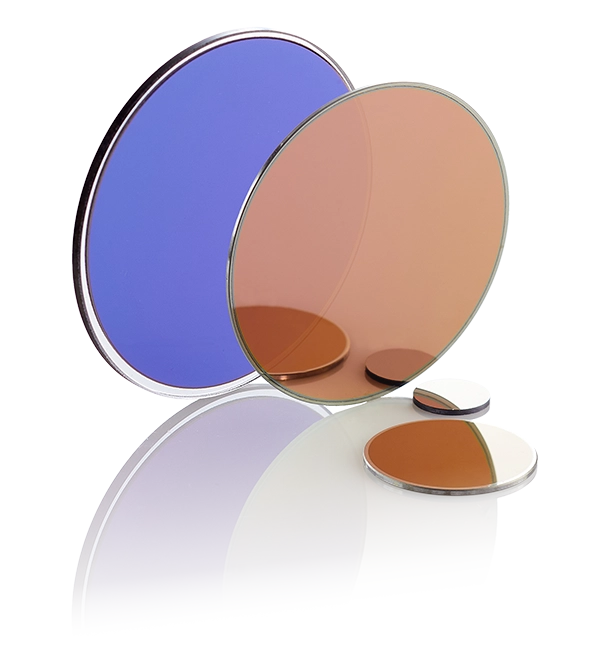

Infrared optical filters for long-pass or bandpass use, photographed on a neutral background.

Andover IR Filters

Precision wavelength selection from 2µm to 14µm

Infrared filters are essential components in thermal imaging, spectroscopy, and defense applications. These specialized filters selectively transmit infrared wavelengths while blocking unwanted radiation, enabling superior optical performance.

Andover Corporation designs infrared optical filters with cutting-edge thin-film coatings and premium IR-transmitting materials to ensure:

  • Precise wavelength control across the near-IR (0.75–1.4µm), midwave IR (MWIR, 3–8µm), and longwave IR (LWIR, 8–15µm).
  • Optimized transmission and blocking with high optical density (OD) for superior spectral purity.
  • Custom-engineered solutions tailored to specific infrared applications.

Whether you need bandpass, longwave pass, or neutral density IR filters, Andover delivers unmatched reliability and performance.

Shop Infrared Filters

IR Filter Construction Technologies

Environmental conditions play a crucial role in the performance and longevity of bandpass filters. Understanding these factors ensures optimal filter selection and helps maintain precise wavelength control in your application.

Magnetron Sputtering

A cutting-edge method delivering:

  • Highly durable, environmentally stable coatings
  • Consistent performance across batches
  • Low water-content coatings for extended longevity
  • Wavelengths from NIR to Mid-IR (1000nm–5000nm)

Resistance Evaporation

Supply-chain secure approach offering:

  • Custom design to scalable production
  • Versatile coating options
  • Wavelength range: NIR to Far-IR (1500nm–15000nm)
  • Available sizes: 2mm–200mm

Diamond-Like Carbon (DLC) Coatings

Ideal for high-index infrared materials, DLC coatings provide:

  • Exceptional durability for Germanium (Ge) and Silicon (Si) optics
  • Low reflectance with a refractive index ~2.0
  • Outstanding resistance to humidity, salt fog, and abrasion
  • Enhanced protection for outer-facing infrared lenses

IR Featured Products

From single-layer simplicity to advanced multi-layer performance

IR filters leverage sophisticated thin-film designs and specialized materials to achieve precise control over infrared radiation. Understanding the available construction methods helps ensure optimal filter selection for your application:

Infrared optical filters for long-pass or bandpass use, photographed on a neutral background.

IR Bandpass Filters

Precision spectral isolation filters designed to transmit specific IR wavelength bands while providing deep blocking of out-of-band radiation. Available in both narrow and broadband configurations for optimal spectral selection.
  • Wavelength Range2.0μm - 14.0μm
  • Bandwidth Options1% to 50% of center wavelength
  • Transmission>80% typical
  • BlockingOD3 average
High Transmission
Deep Blocking
Custom Options
Infrared optical filters for long-pass or bandpass use, photographed on a neutral background.

Standard IR Long Wave Pass

Sharp cut-on filters for isolating longer IR wavelengths while providing deep rejection of shorter wavelengths. Ideal for order-sorting and blocking applications.
  • Cut-on Range1.0μm - 8.0μm
  • Transmission>85% above cut-on
  • RejectionOD3 below cut-on
Sharp Transition
Deep Blocking
Standard Sizes

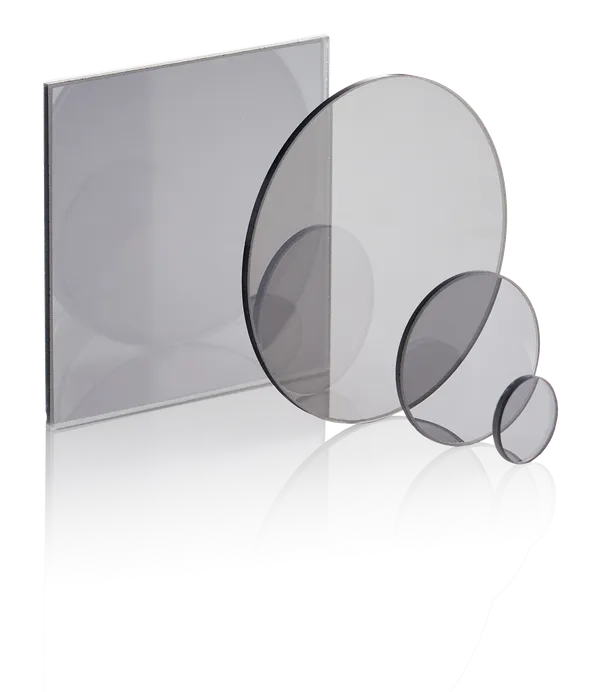

Optical filter or component from Andover Corporation shown on a white background.

IR Neutral Density Filters

Precision attenuation filters for the infrared region, utilizing metallic coatings on germanium substrates. Provides controlled reduction of IR intensity while maintaining spectral neutrality.
  • Wavelength Range2.0μm - 14.0μm
  • Optical Density Range0.3 to 3.0
  • SubstrateGermanium
Spectrally Neutral
Durable Coating
AR Coating Optional
IR Neutral Density Filters

IR Neutral Density Filter Sets

Calibrated sets of IR neutral density filters in protective storage cases. Ideal for systematic IR intensity control and calibration applications.
  • Set Contents6 or 9 filters
  • ND Range0.3 to 3.0
  • CalibrationIndividual data included
Matched Sets
Storage Case
Calibrated
Infared Supressing-600w

IR Suppressing Filters

Enhanced IR blocking filters that combine dielectric reflection and absorption for extended infrared suppression. Ideal for low-power applications requiring maximum heat reduction.
  • Visible Transmission ≥65% (400nm-600nm)
  • IR Blocking ≤10% avg (700nm-2000nm)
  • Operating Temperature Up to +100°C
  • Construction Dielectric + Absorbing Glass
  • Substrate Borosilicate glass
Extended IR Blocking
Absorption Enhanced
Low Power Use
Cost Effective

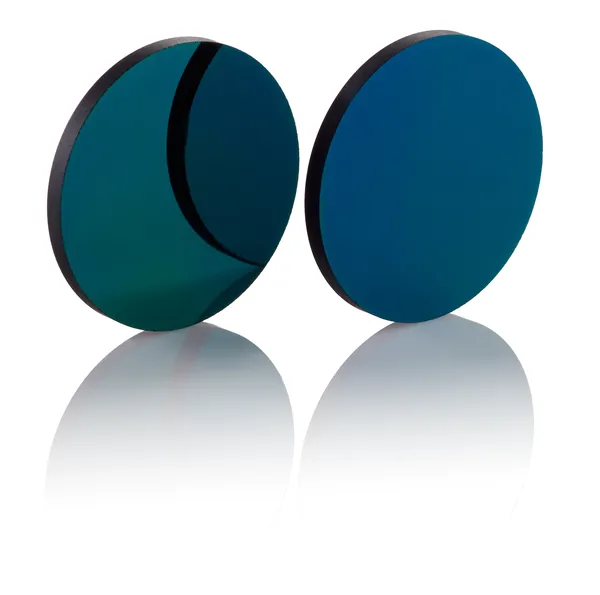

Infrared Windows and Substrates

IR Windows and Substrates

High-quality IR-transmitting materials for windows, substrates, and custom optics. Available in various materials to match your wavelength and environmental requirements.
  • MaterialsGe, Si, ZnSe, CaF2, Sapphire
  • Surface Quality60-40 scratch-dig
  • Flatnessλ/4 per inch
Multiple Materials
Precision Polished
Custom Sizes

Frequently Asked Questions

What is an infrared (IR) filter?

An IR filter is an optical filter designed to transmit specific infrared wavelengths while blocking others. These filters are commonly used in thermal imaging, spectroscopy, and aerospace systems.

What types of IR filters does Andover Corporation offer?

We manufacture IR bandpass filters, long wave pass filters, IR neutral density filters, and IR suppressing filters. Each type supports different wavelength ranges and applications from 2µm to 14µm.

Which materials are used for Andover’s infrared filters?

Our IR filters are fabricated using materials such as Germanium, Silicon, Zinc Selenide, and Sapphire, selected for their infrared transmission and durability.

Can I request a custom infrared filter?

Yes. We offer custom IR filter design based on your exact wavelength, bandwidth, and substrate requirements—ideal for defense, medical, or research applications.

What are typical applications for IR filters?

IR filters are used in thermal cameras, gas sensors, FLIR systems, aerospace instruments, and spectrometers, among other applications -- anything where precise IR control is critical!
